TiVo TCD24004A


Front of the TiVo TCD24004A

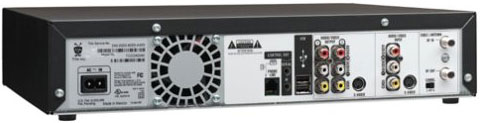

Back of the TiVo TCD24004A



Facts about the TiVo TCD24004A:

Manufacturer TiVo
Approximate Manufacture Dates 2004 - 2005
TiVo Service Number Prefix 240 - What is this?
Original Hard Drive Size 40 GB Western Digital
Hard Drive Format ATA/IDE PATA
Original Recording Capacity 40 Hours at Basic Quality
Exterior Dimensions 12.5 x 15 x 3.25 inches

Weight (without cables and remote)

9 pounds (unit only)
Input Connections 1 Composite (video and L/R audio)
1 S-Video
1 RF/Coax
Output Connections 2 Composite (video and L/R audio)
1 S-Video
1 RF/Coax
Other Ports 1 Phoneline
1 Serial
1 IR
2 USB
1 Power
Original Remote Series2 Gray TiVo Peanut Remote - TiVo Remote Info
Buttons on Faceplate None
Fan Size 70 x 70 x 25 mm
Current OS Version 9.1
DirecTV Compatibility Yes, with a separate DirecTV Receiver
Dual Tuner Capability No
Networking Features Yes
High Definition No
Link to full product description TiVo TCD24004A info at TiVopedia

NOTE: If you are copying the chart above to use as reference, you MUST include the last line of the chart, including the link to this website. Failure to do so is a violation of Federal Copyright law. Please see the bottom of this page for more information.

General Description of the TiVo TCD24004A:

This unit is a minor revision to the TCD240040 encompassing a larger fan and a slightly different internal layout.


Remote Info for the Series2 Gray TiVo Peanut Remote:

This is the second generation TiVo remote. This remote will be compatible with all other TiVos that use Peanut-shaped remotes. This has a TiVo logo on the bottom.

TiVo Remote
Type and Color Series2 Gray TiVo Peanut Remote
Number of Buttons 34
DVR 1-2 Switch Yes
SAT/TV Switch No
Compatibility Compatible with all TiVo DVRs which use the Peanut remote. Originally intended for Series2 models from TiVo and AT&T/Comcast.
Order a Replacement See Standard TiVo Peanut remote at weaKnees
